HYD-531
Feature
Multiple intelligent control options for greater energy savings.
Compatible with 60mm/76mm spigot, can be post top and side entry mount,+/-15 degrees adjustable angle.

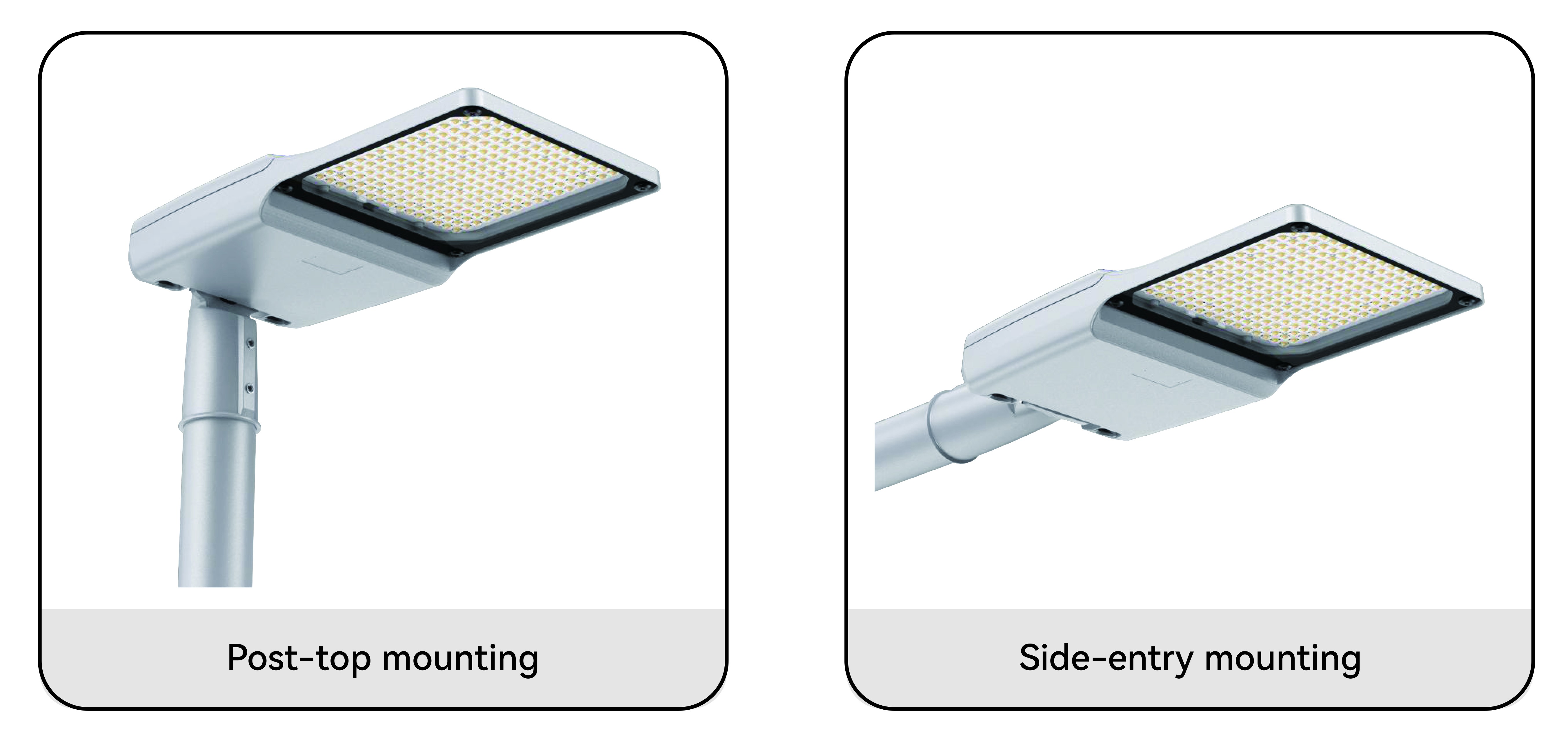

Two installation：Post Top Mounting and Side Entry Mounting

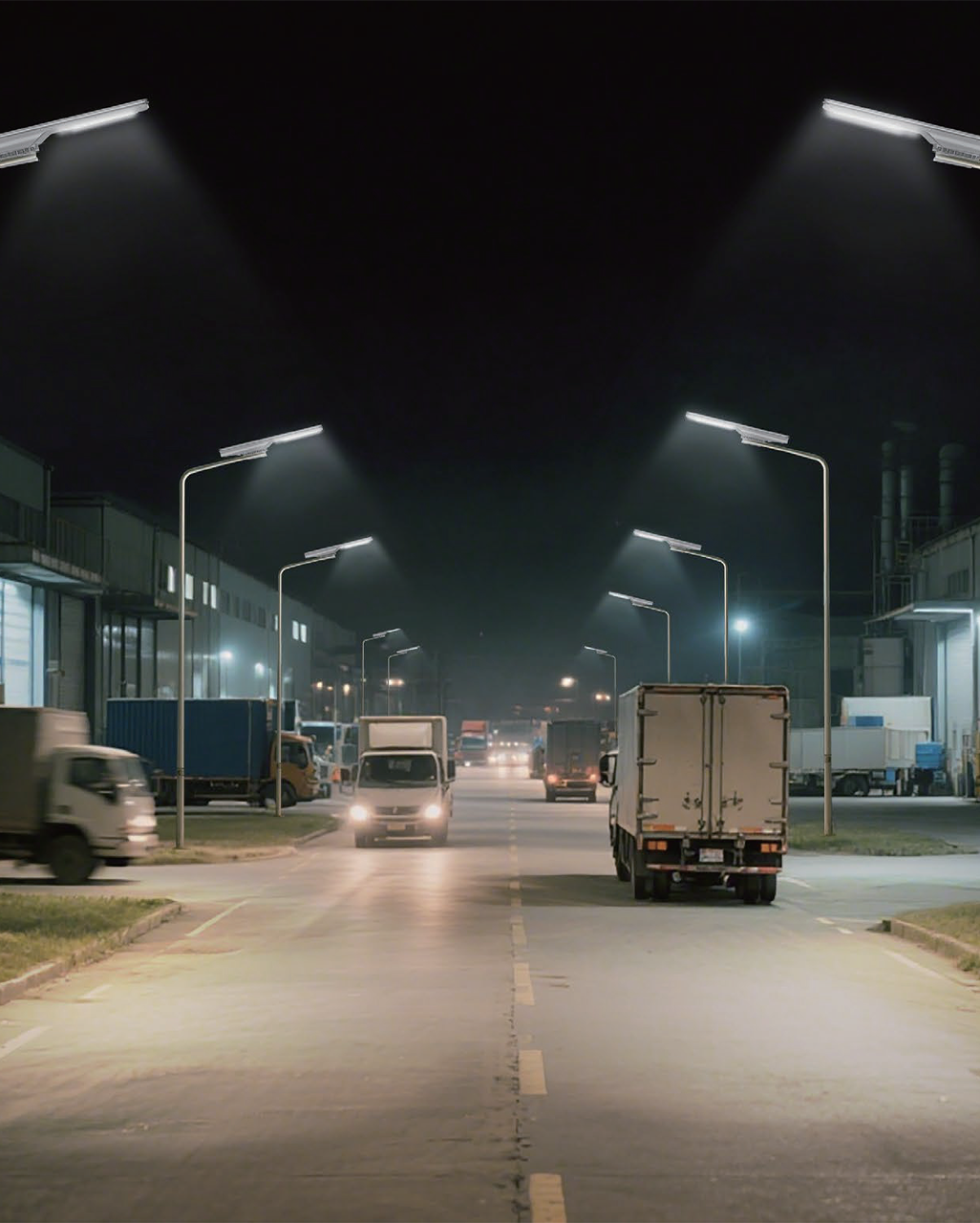

Application
Highway
Road
Pedestrian area
Parking lot
Large loading area
Data
| Item No. | Power | Voltage | Luminous Efficiency | Size |
| HYD-531 | 30/40 | 120-277V | 150 lm/w | 448*190*65mm |
| HYD-531 | 50/75 | 120-277V | 150 lm/w | 543*204*65mm |
| HYD-531 | 100/120 | 120-277V | 150 lm/w | 553*253*65mm |
| HYD-531 | 150/180 | 120-277V | 150 lm/w | 599*253*65mm |
| HYD-531 | 200 | 120-277V | 150 lm/w | 648*255*65mm |

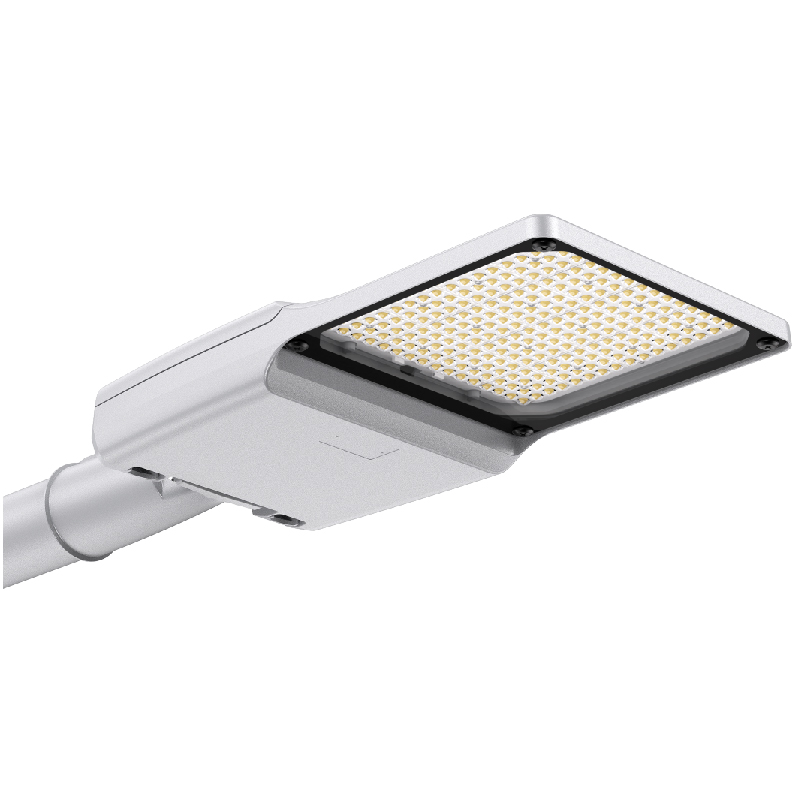

The 531 is a sleek and lightweight streetlight with a minimalist design, featuring a lamp body made of ADC12 aluminum alloy. The cover opens from the top, allowing for tool-free access and easy maintenance. Equipped with a power cut-off switch, the light automatically disconnects when the cover is opened, minimizing the risk of electric shock during maintenance. The built-in spirit level ensures proper alignment during installation.
The 531 is compatible with 60mm and 76mm poles, and can be installed both horizontally and vertically, with an adjustable angle range of -15° to +15°. A 3PIN NEMA photocell base is available as an option, further enhancing smart control and energy-saving capabilities, making it an ideal solution for modern street lighting applications.
